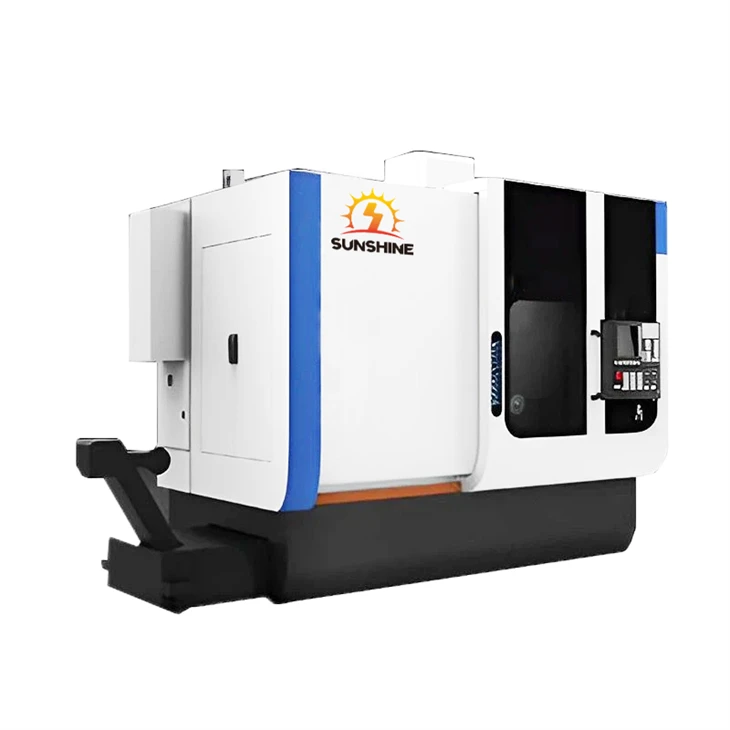

Horizontalus posūkis centras
In today's manufacturing industry, the rigidity and stability of machine tools are essential to ensure production efficiency and product quality. The design scheme of derva sand casting, multiple stress relief process, new chevron column structure, meter-shape armatūra and double-layer table structure is designed to improve the rigidity and stability of the machine tool.
The design of double-layer table structure can better meet the needs of modern manufacturing industry and improve the production efficiency of machine tools. In addition, the double-layer table structure can also increase the overall rigidity and stability of the machine tool, so that it can maintain stable operation in a complex working environment.
In išvada, the design scheme using derva smėlis liejimas, korys struktūra, multiple stress relief procedures, new silkbone column structure, metro formos armatūra ir dviaukštis stalas konstrukcija skardinė žymiai pagerinti the rigidity and stability of the machine. This design scheme can not only meet the needs of modern manufacturing, but also provide a strong guarantee for the improvement of production efficiency and produktas kokybė.
| Modelis | HMC1075 | HMC1290 | HMC1395 |
| Stalas dydis (mm) | 1300X600 | 1360X700 | 1400X700 |
| Leistina maksimali apkrova (kg) | 800 | 1000 | 1000 |
| X ašis eiga (mm) | 1000 | 1200 | 1200 |
| Y ašis eiga (mm) | 750 | 800 | 800 |
| Z ašis eiga (mm) | 800 | 700 | 750 |
| T formos lizdas | 5-18-105 | 5-18-122 | 5-18-122 |
| Atstumas nuo velenas galas veidas į darbą stalas (mm) | 115-915 | 180-880 | 168-918 |
| Atstumas nuo velenas centras iki Z-ašis bėgis paviršius (mm) | 110-860 | 140-940 | 260-1060 |
| Velenas siaurėjantis | BT50-150 | BT50-190 | BT50-190 |
| Velenas greitis (r/min) | 6000 | 6000 | 6000 |
| X/Y/Z greitas judėjimas (m/min) | 20/12/20 | 20/12/20 | 20/12/20 |
| 8000 | 10000 | 10000 |
| HMC1814 | HMCT500 | HMCT630 | |
| 2000X900 | 500*500 | 630*630 | |
| Leistina maksimali apkrova (kg) | 1600 | 600 | 950 |
| X ašis eiga (mm) | 1800 | 600 | 1050 |
| Y ašis eiga (mm) | 1280 | 360 | 750 |
| Z ašis eiga (mm) | 900 | 450 | 900 |
| T formos lizdas | 5-22-165 | — | — |
| Atstumas nuo velenas galas veidas į darbą stalas (mm) | 200-1100 | 150-850 | — |
| Atstumas nuo velenas centras iki Z-ašis bėgis paviršius (mm) | 140-1420 | 130-650 | 130-1030 |
| Velenas siaurėjantis | BT50-190 | BT40-150 | BT50-190 |
| Velenas greitis (r/min) | 6000 | 8000 | 6000 |
| X/Y/Z greitas judėjimas (m/min) | 18/12/18 | 20/12/20 | 20/12/20 |
| Mašina svoris (kg) | 15000 | 8000 | 10000 |
